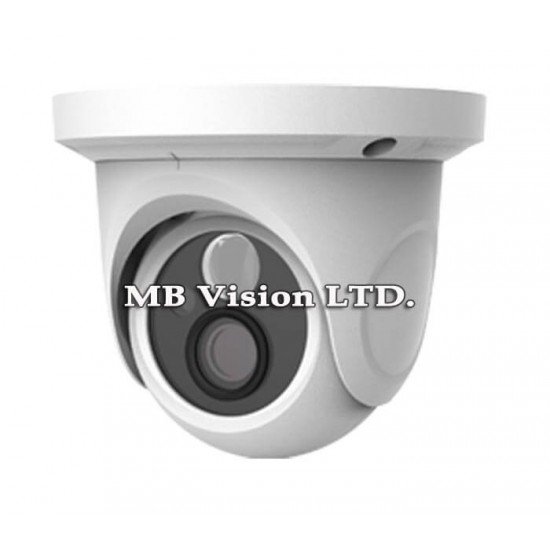

Външна 2MPix HD TV куполна камера, IR 20м - ТD7524TED/ IR1/3.6

Кратки характеристики:

• 2 Mpixel Day&Night HD-TVI камера или 1080p (1920x1080)/30FPS(60Hz), 25FPS(50Hz) ТD7524TE-D/IR2
• 1/3” CMOS progressive сензор
• Обектив фиксиран 3.6mm
• IR cut Filter
• IP66 – подхдяща за външен монтаж
• Резолюция 1080p (1920x1080)/30FPS, 25FPS(50Hz)
• Вградени IR LEDs – с дистанция на светене до 30m
• AWB, AGC
• Захранване DC12V

Подробни параметри:

Camera

• Image sensor    1/3"CMOS
• Resolution:        1080p (1920x1080)


• System PAL/NTSC
• Min.illumination              0Lux(IR LED ON)
• Lens      3.6mm(2.8/6mm optional)
• IR distance         10~20M
• Water proof      IP66
• Video out           BNCx1
• Image size          1080p (1920x1080)
• Frame rate:        30fps(60Hz),25fps(50Hz)
• Function              Day&Night         ICR
• S/R Ratio             ＞52dB(AGC off)
• Electronic shutter           1/60s -1/67500s
• AGC       Yes
• White balance  auto white balance

Others

• Power supply    DC12V
• Working Enviroment     -40℃  ~ 70℃，10%~90% humidity
• Dimensions(mm)            Ф108x90.5
